Mini Lift – Classic #AE1001

Mini Lift – Classic #AE1001

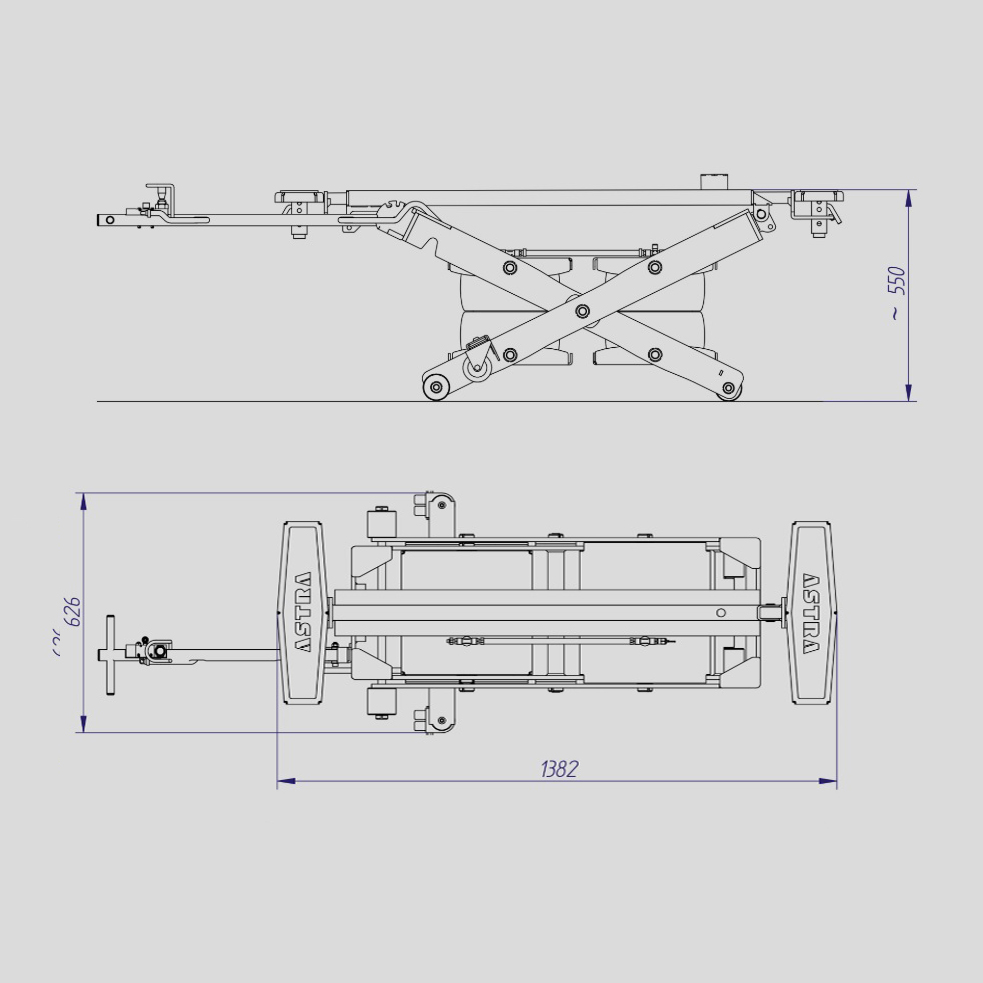

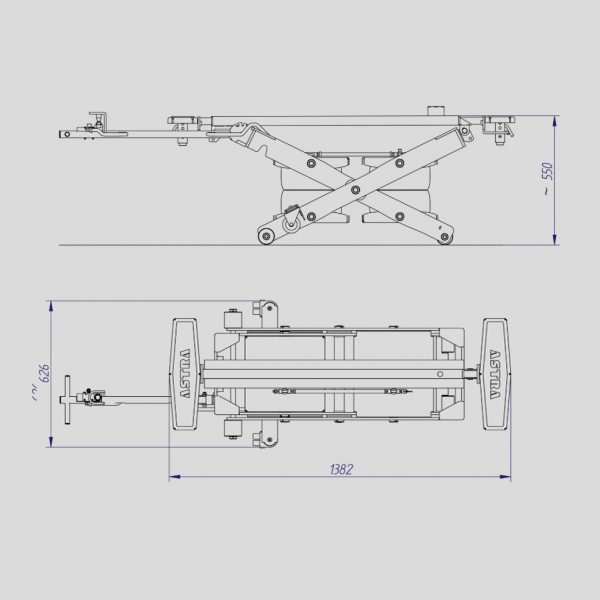

Maximum height from the ground (one axis): 1600mm
Maximum height from the ground (two axes): 550mm
Carrying capacity (two axles): 2500kg
Carrying capacity (one axle): 4500kg
Minimum height from ground: 113mm
Maximum width: 630mm
The maximum length is: 1832mm
The minimum length is: 1115mm
Weight: 105kg
Working pressure of pneumatic: 6-8 bar
Lifting speed to maximum height: 13 Seconds

Comes with a pair of Safety Stands.

SKU: AE1001 Categories: , Tags: , ,

Description

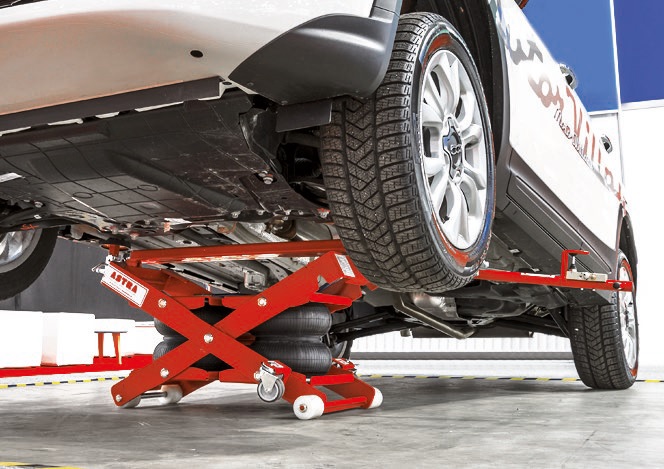

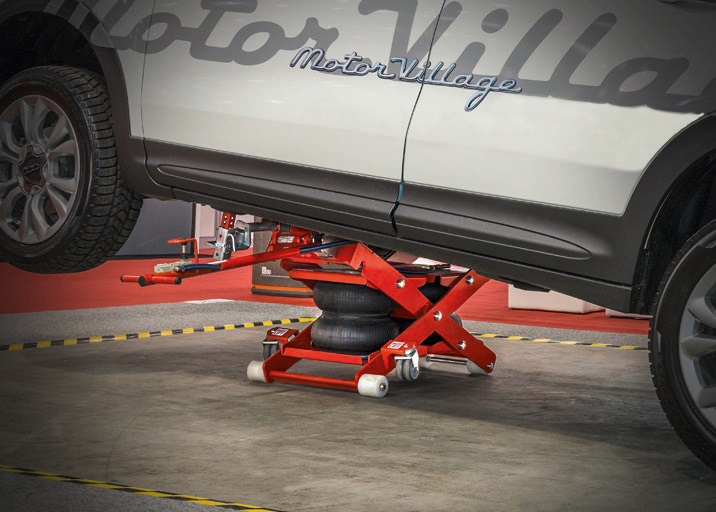

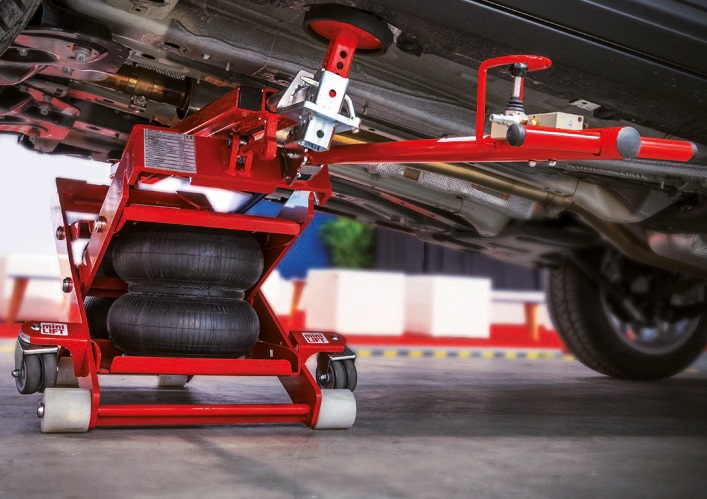

ASTRA Mini Lift Classic

· The original system of compact and fast lifting for the automotive market
· miniLIFT enables you to work at the right height for: Bodyshops, Garages and Tyres-shops
· With its small size, you can easily place the lift under the car and then work in the same way as any other lift
· Extremely versatile lift, which allows you to lift any small/large car, van and SUV on the market

MiniLift, this is the ability to move the car through the shop on the lift, thanks to the option of having wheels. The maximum lifting height of the car’s axis is one meter sixty centimeters, which allows you to carry out 90% of all existing services: oil change, replacement of brake pads, grooving of brake discs, replacement of shock absorbers and running gear parts, and so on. And a large lifting capacity will lift almost any car with a mass of up to 5 tons.
Maximum height from the ground (one axis): 1600mm
Maximum height from the ground (two axes): 550mm
Carrying capacity (two axles): 2500kg
Carrying capacity (one axle): 4500kg
Minimum height from ground: 113mm
Maximum width: 630mm
The maximum length is: 1832mm
The minimum length is: 1115mm
Weight: 105kg
Working pressure of pneumatic: 6-8 bar
Lifting speed to maximum height: 13 Seconds
